Cam Buckle Assembly with “J” Hooks
Cam Buckle Assembly with “J” Hooks
Grade: 304 and 316 Stainless Steel
Material: Nylon Webbing
Retail and bulk packaging available

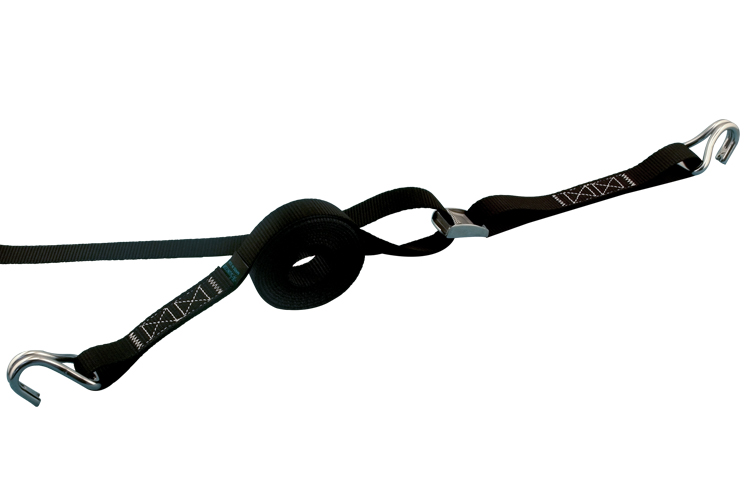

The Cam Buckle Assembly is available in a 1” width and multiple lengths and colors. It features two stainless steel “J” hooks and a cam buckle for easy removal of the webbing. This webbing assembly is perfect for light duty applications.
Specifications
ALL DIMENSIONS ARE NOMINAL (+/- 3%) AND ARE SUBJECT TO CHANGE WITHOUT NOTICE.

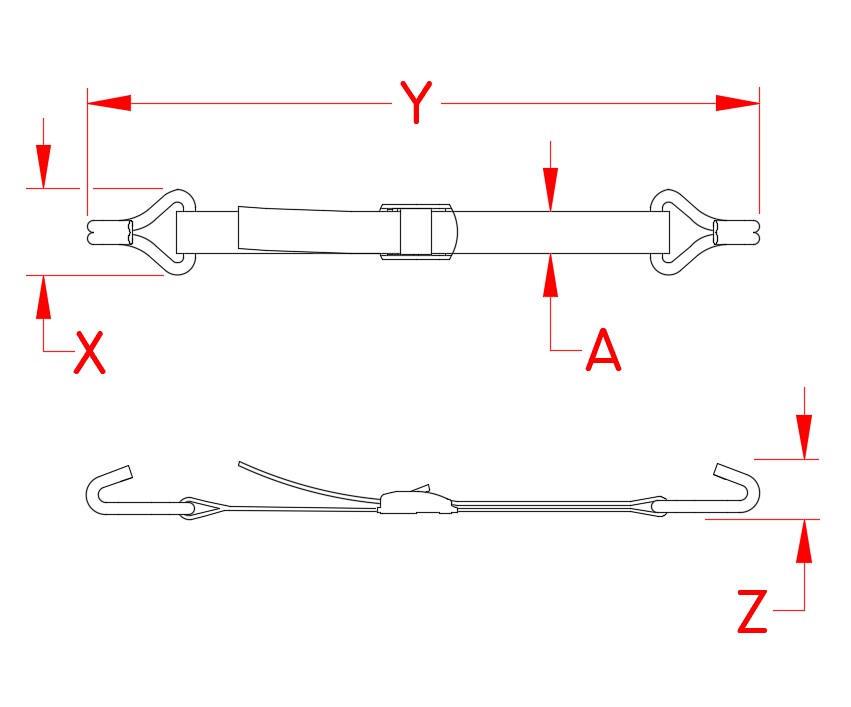

| ITEM | A (webbing) | X | Y | Z | Hooks (part #) | WLL (lb) | WT (lb) |
|---|---|---|---|---|---|---|---|
| Black | |||||||
| S0205-JJ10 | 1″ | 1.71″ | 10′ | 1.35″ | S0211-0025 | 100 | 0.71 |
| S0205-JJ20 | 1″ | 1.71″ | 20′ | 1.35″ | S0211-0025 | 100 | 0.98 |
| S0205-JJ30 | 1″ | 1.71″ | 30′ | 1.35″ | S0211-0025 | 100 | 1.30 |
| Blue | |||||||
| S0205-JJ10-B | 1″ | 1.71″ | 10′ | 1.35″ | S0211-0025 | 100 | 0.71 |
| S0205-JJ20-B | 1″ | 1.71″ | 20′ | 1.35″ | S0211-0025 | 100 | 0.98 |
| S0205-JJ30-B | 1″ | 1.71″ | 30′ | 1.35″ | S0211-0025 | 100 | 1.30 |
| White | |||||||
| S0205-JJ10-W | 1″ | 1.71″ | 10′ | 1.35″ | S0211-0025 | 100 | 0.71 |
| S0205-JJ20-W | 1″ | 1.71″ | 20′ | 1.35″ | S0211-0025 | 100 | 0.98 |
| S0205-JJ30-W | 1″ | 1.71″ | 30′ | 1.35″ | S0211-0025 | 100 | 1.30 |
| Orange | |||||||
| S0205-JJ10-O | 1″ | 1.71″ | 10′ | 1.35″ | S0211-0025 | 100 | 0.71 |
| S0205-JJ20-O | 1″ | 1.71″ | 20′ | 1.35″ | S0211-0025 | 100 | 0.98 |
| S0205-JJ30-O | 1″ | 1.71″ | 30′ | 1.35″ | S0211-0025 | 100 | 1.30 |
