Slip Hook – Bolt On
Slip Hook – Bolt On
Grade: 316 Stainless Steel
Retail and bulk packaging available

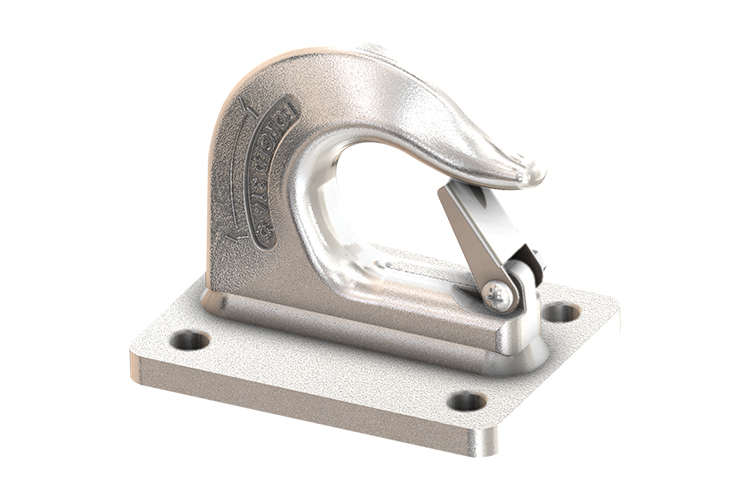

The Slip Hook – Bolt On is made from 316 stainless steel for maximum corrosion resistance. These stainless steel slip hooks are designed to handle heavy loads reliably, ensuring workplace safety and operational efficiency.
Specifications
ALL DIMENSIONS ARE NOMINAL (+/- 3%) AND ARE SUBJECT TO CHANGE WITHOUT NOTICE.

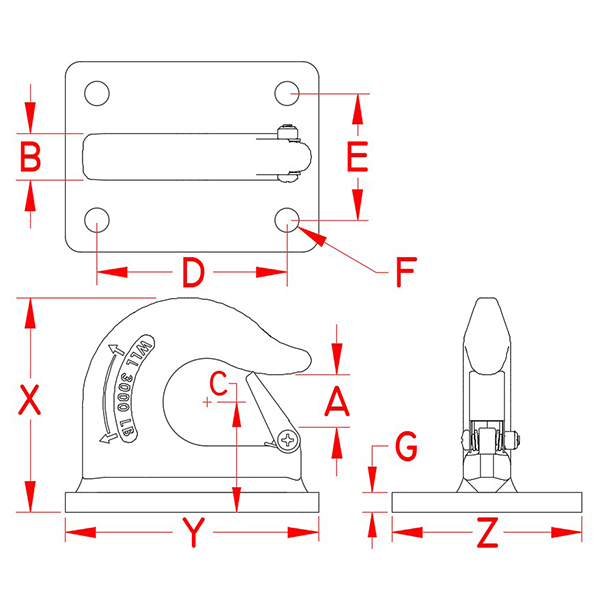

| ITEM | A | B | C | D | E | F | G | X | Y | Z | WLL (lb) | WT (lb) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S0459-SB07 | 0.60″ | 0.56″ | 1.32″ | 2.00″ | 1.63″ | 0.32″ | 0.24″ | 2.61″ | 2.88″ | 2.50″ | * 1,500 | 0.97 |
| S0459-SB08 | 0.72″ | 0.66″ | 1.51″ | 2.50″ | 1.75″ | 0.39″ | 0.31″ | 2.96″ | 3.50″ | 2.75″ | * 2,000 | 1.59 |
| S0459-SB10 | 0.85″ | 0.74″ | 1.73″ | 3.00″ | 2.00″ | 0.39″ | 0.31″ | 3.38″ | 4.00″ | 3.00″ | * 3,000 | 2.20 |
| S0459-SB13 | 1.01″ | 0.96″ | 2.03″ | 3.38″ | 2.50″ | 0.52″ | 0.39″ | 4.13″ | 4.88″ | 3.75″ | * 4,000 | 4.20 |
