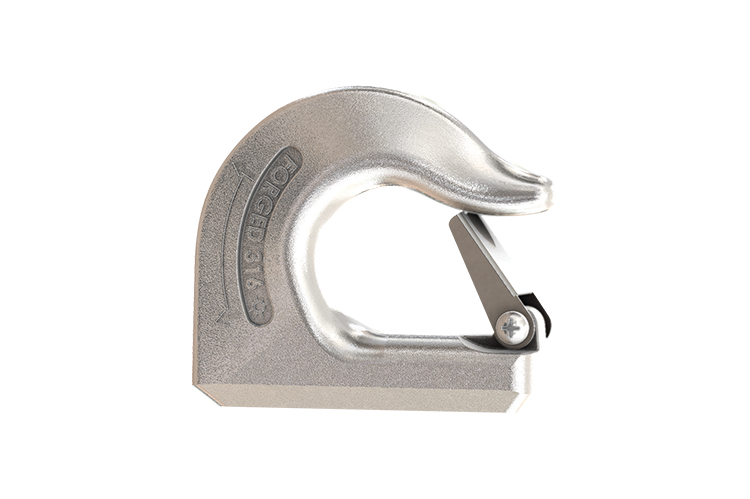

Slip Hook – Weld On
Slip Hook – Weld On
Grade: 316 Stainless Steel
Retail and bulk packaging available
The Slip Hook – Weld On is made from 316 stainless steel for maximum corrosion resistance. These stainless steel slip hooks are designed to handle heavy loads reliably, ensuring workplace safety and operational efficiency.
Specifications
*WORKING LOAD LIMIT DEPENDS ON THE QUALITY OF THE WELD ATTACHING THE BASE.
ALL DIMENSIONS ARE NOMINAL (+/- 3%) AND ARE SUBJECT TO CHANGE WITHOUT NOTICE.

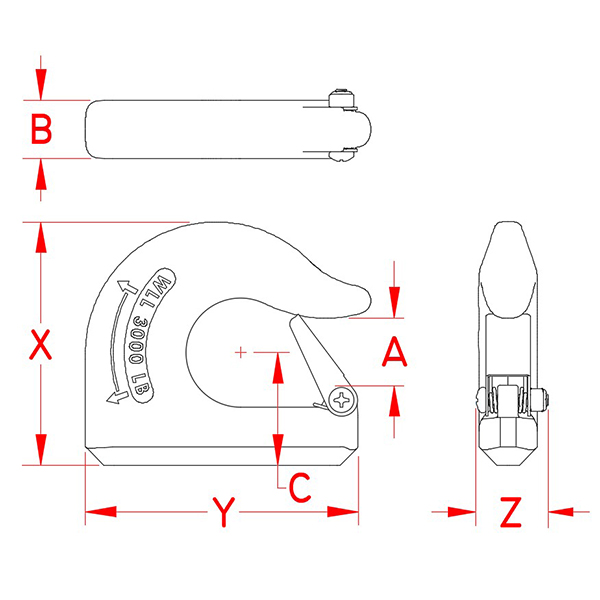

| ITEM | A | B | C | X | Y | Z | WLL (lb) | WT (lb) |
|---|---|---|---|---|---|---|---|---|
| S0459-S007 | 0.60″ | 0.56″ | 1.08″ | 2.37″ | 2.65″ | 0.71″ | * 1,500 | 0.49 |
| S0459-S008 | 0.72″ | 0.66″ | 1.20″ | 2.65″ | 3.03″ | 0.71″ | * 2,000 | 0.76 |
| S0459-S010 | 0.85″ | 0.74″ | 1.42″ | 3.07″ | 3.44″ | 0.79″ | * 3,000 | 1.12 |
| S0459-S013 | 1.01″ | 0.96″ | 1.64″ | 3.74″ | 4.33″ | 0.79″ | * 4,000 | 2.13 |
